Hauslane UC-PS18SS-30 - Chef 30-in Ducted Stainless Steel Undercabinet Range Hood
Hauslane UC-PS18SS-30 - Chef 30-in Ducted Stainless Steel Undercabinet Range Hood
Regular price
$499.99 USD
Regular price
Sale price
$499.99 USD
Quantity
Couldn't load pickup availability

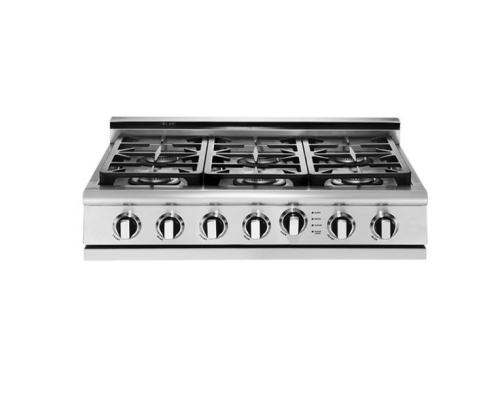

Precision sealed burner gas range tops are built hand crafted quality, high performance burners, and dedication to precision that will keep you cooking masterpieces for a lifetime. Manufacturer Delay
Features
- 19,000 BTU Power-Flo sealed burners turn down to Tru Simmer: 18,000 BTU Thermo-Griddle Plate
- Stay-Cooll die cast, chrome plated metal knobs
- Auto-ignition/re-ignition on all burners
- Smooth-top continuous cast iron grates with easy to clean matte porcelain finish
- 3" Island trim
Specifications

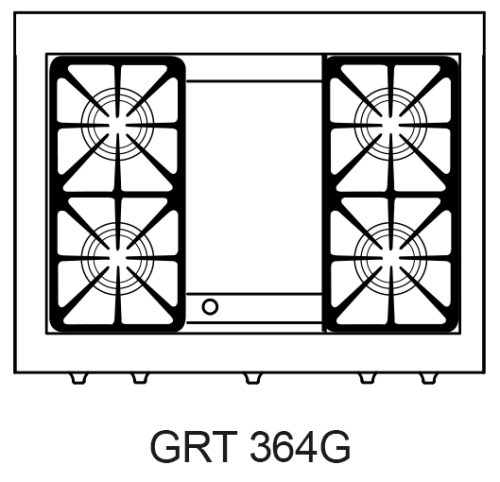

| Configuration | 4 Sealed and 12 Thermo-Griddle |
| Size | 36 |
| Burner Type | Sealed |
| Range Fuel | Gas |
| Utility Type | All Gas |
| Electrical Rating | Voltage: 120 VAC/60 Hz Max. Current: 3.8 AMP Breaker Size: 10 AMP |
| Shipping Weight | 250 lbs |
| Product Weight | 220 lbs |
| Shipping Dimensions | 40 W x 20 H x 32 D |
| Product Dimensions | 35-7/8 W x 8-1/4 H x 27-1/8 D |
| Max Current/Circuit Breaker Rating | Voltage: 120 VAC/60 Hz Max. Current: 3.8 AMP Breaker Size: 10 AMP |
| Wiring Type | 120 VAC, 3 Prong with dedicated ground |
| Gas Connections | Natural Gas: 1/2 NPT Male |
| 7 WC input pressure (max. allowable pressure | 1/2 psi), 4 WC Pressure Regulator provided |
| Liquid Propane | 1/2 NPT Male |
| 11 WC input pressure (max. allowable pressure | 1/2 psi), 10 WC Pressure Regulator provided |
| Cutout Dimension | Standard Installation: 34-15/16 W x 23-1/8D. No bottom platform required. 9 min. clearance to drawers |
